Swivel Lift BSL 350

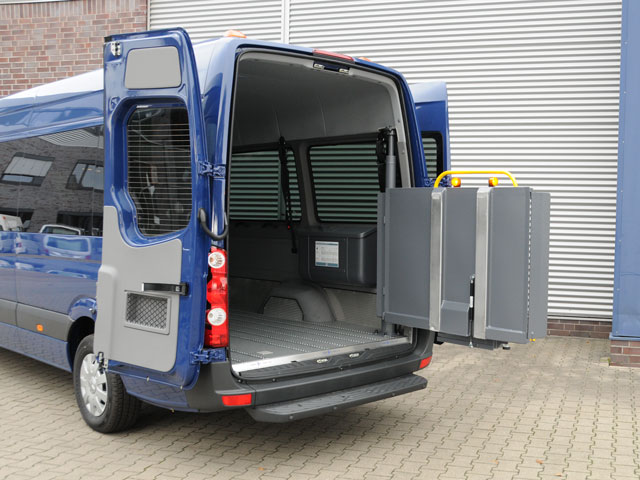

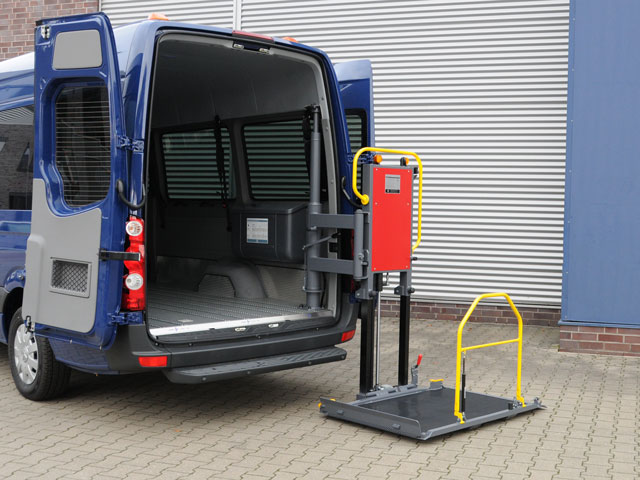

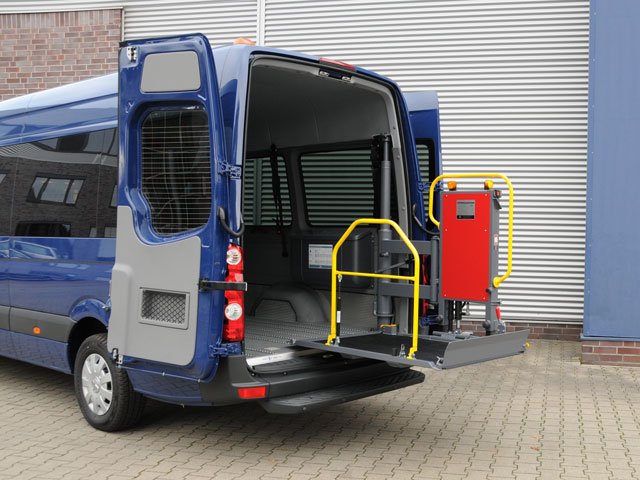

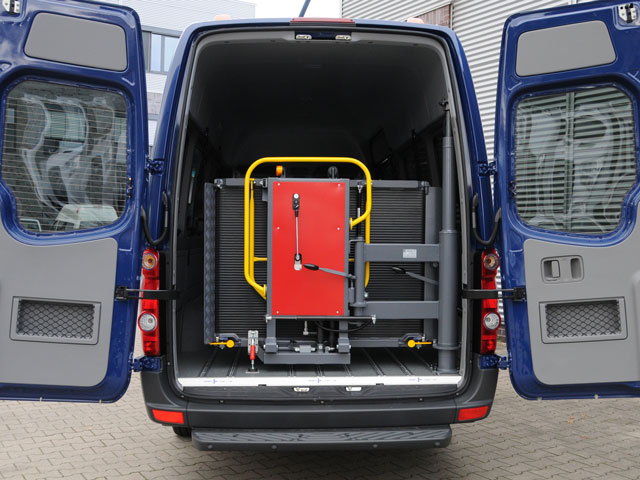

The BSL 350 swivel lift requires little space behind the vehicle, since it can be accessed directly from the pavement. This allows it to be swung in and out even in tight traffic conditions. The BSL 350 can be swivelled through 90° twice, so that the lowering and lifting of the platform takes place away from the edge of the vehicle. The platform of this sturdy and durable swivel lift is powered hydraulically, with the lowering operation being carried out under its own weight. The wheelchair user is perfectly secured thanks to the two roll-off safety barriers and the hand rail. When folded, the swivel lift saves space and requires an installation depth in the passenger compartment of only about 30 cm.
The BSL 350 is the classic of the AMF-Bruns product range and can look back proudly at a track record of over 40 years.
THESE FACTS MAKE ALL THE DIFFERENCE
- Load capacity 350 kg
Lift can be swivelled 2 x 90°
Platform can be accessed directly from pavement
Minimum space requirement behind the vehicle; easy to swivel in and out even under narrow traffic conditions
Lifting and lowering operations are carried out averted to the vehicle’s rear edge
2 roll-off safety barriers and hand rails ensure safe lifting and lowering operation
Robust, bearing-supported lifting unit; absolutely maintenance-free as well as weatherproof
Manual pump for emergency operation
Hydraulic power pack integrated in lifting unit; space-saving and easy to install
EMC tested according to EU regulations
Meets EN 1756, ll requirements
